AKETEK® Lift-Up AIR welding helmet with belt-mounted AIR powered air-purifying respirator and air hose
Weld, grind and breathe easy.

AKETEK® Lift-Up AIR

The Lift-Up helmet paired with the AKETEK® AIR powered air-purifying respirator. Weld behind the True Colour filter, lift the visor to grind and inspect – and breathe TH3P-filtered air the whole time, with 13–16 hours of battery life.

Filter class
TH3P
Airflow
190 / 210 l/min
Battery life
13–16 h
Grinding view
170 × 85 mm
Find a distributor ↗User manuals ↓

Product advice and availability through our distributor network.

Welder grinding in an AKETEK® Lift-Up AIR helmet with the welding visor raised and the air hose over the shoulder
Lift-Up AIR: grinding visor down, welding visor up
THOUGHTFULLY ENGINEERED

Details that make a difference.

01

Weld, lift, grind – with clean air

Raise the welding visor to grind or inspect behind the clear 170 × 85 mm grinding visor. The face seal keeps the filtered air inside whichever visor is down.

02

TH3P filtered air

Spark arrestor, activated-carbon prefilter and P3 HEPA filter remove up to 99.995 % of airborne particles – the highest class, TH3, to EN 12941.

03

True Colour filter, always on

Shade 3 light state, variable 8–12 dark state, 0.1 ms switching and up to 88,000 hours of battery life.

AKETEK® Lift-Up welding helmet with the welding visor raised over the clear grinding visor

Weld and grind without changing helmets

Fold the welding visor outward and upward and keep working behind the clear grinding visor, with a 170 × 85 mm field of view for grinding and inspecting the weld. Lower it again before you strike the next arc – the visor follows guides on both sides of the shell. The grinding visor is a replaceable part (SKU 73002).

Exploded view of the AKETEK® AIR unit with filter cover, prefilters and HEPA particle filter

Clean air, all shift long

The AKETEK® AIR unit draws air through a spark arrestor, an activated-carbon prefilter and a P3 HEPA particle filter, removing up to 99.995 % of airborne particles – protection class TH3P to EN 12941. The brushless fan and True Flow control keep the airflow constant at your chosen setting, 190 or 210 l/min, and the 3300 mAh battery lasts 13–16 hours depending on the mode and the condition of the filters.

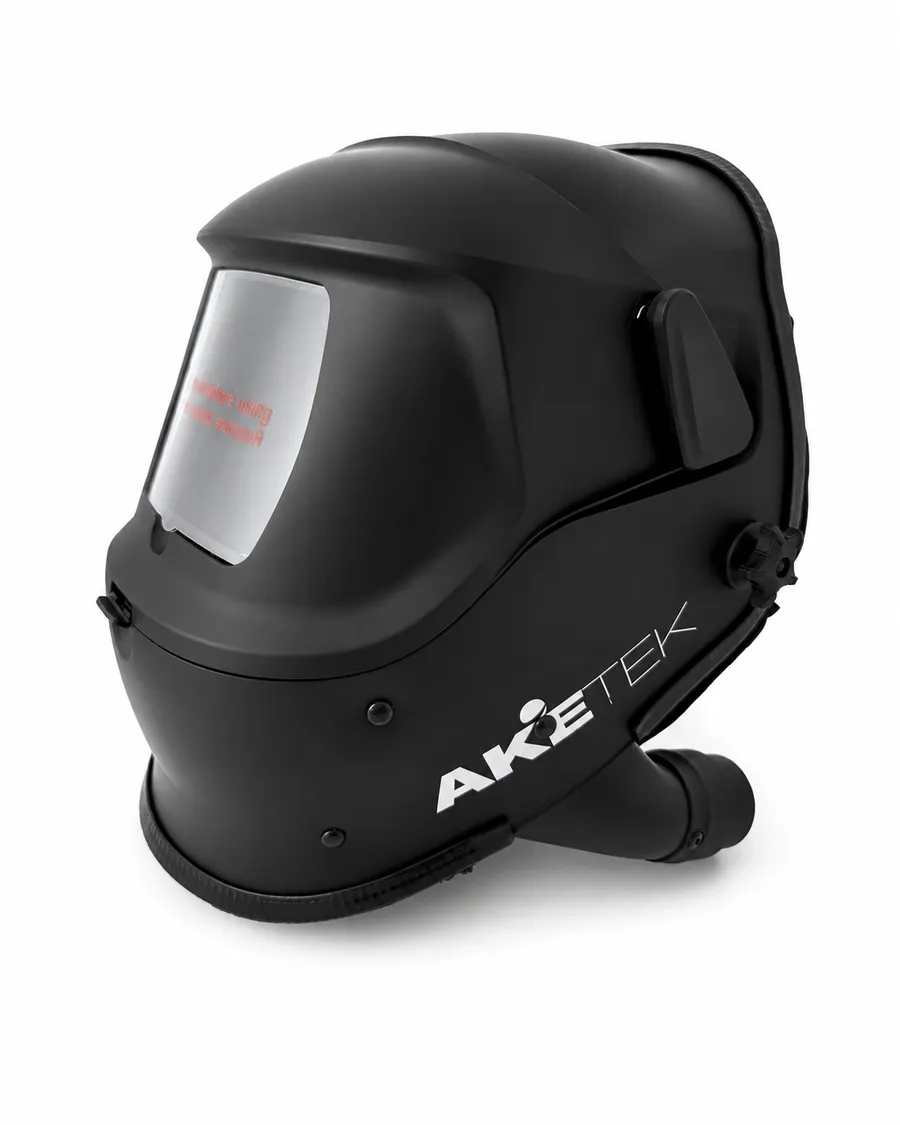

AKETEK® Lift-Up AIR helmet shell with face seal

Air where you need it

The hose enters the Lift-Up helmet at the side and a nozzle directs the filtered air towards your nose and mouth, so the airflow does not irritate your eyes. A face seal around the helmet keeps the clean air inside. The AIR shell, face seal and hose are all replaceable parts.

AKETEK® AIR fan unit with waist belt and battery charger

Worn on the lower back, felt nowhere

The AIR unit weighs 1.65 kg and sits on the lower back on a waist belt with shoulder straps that spread the weight between your shoulders and hips. It works quietly. If the airflow drops too low, an audible, visual and vibrating alarm goes off; a low battery gives an audible and visual alarm, and an indicator lights up when the filter needs changing. The battery charges with the supplied charger; a spare battery lets you work around the clock.

AKETEK® True Colour auto-darkening welding filter, front view

Swedish True Colour optics

Liquid-crystal optics are Aketek’s speciality, built on 50 years of auto-darkening experience since Åke Hörnell’s first prototype in 1976. The filter gives a clear, natural-coloured view in the light state (shade 3) and switches to your chosen dark shade between 8 and 12 in 0.1 ms. It is rated 1/1/1/1 with class V1 angular dependence to EN ISO 16321 and blocks UV and IR radiation at all times, even in the light state.

THE TECHNICAL DETAILS

Built on precision.

Values from the current data sheet and user instructions. Use the instructions for correct setup, use and maintenance.

Optical class
1/1/1/1
Switching time
0.1 ms
Arc sensors
2
Light shade / dark shade
3 / 8–12
Viewing area
100 × 54 mm
Grinding visor
170 × 85 mm
Applications
MIG/MAG · MMA · TIG · plasma cutting · grinding
Helmet weight
930 g
Shell material
PA66
UV/IR protection
At all times
Operating temperature
−5°C – +55°C
Angular dependence class
V1
Standards
ANSI Z87.1 · EN ISO 16321-1:2022 · EN ISO 16321-2:2021 · EN 12941 TH3
Warranty
ADF 2 years · AIR unit and battery 1 year

AKETEK® AIR / PAPR

Airflow · low / high
190 / 210 l/min
Battery capacity
3300 mAh
Battery life · low / high*
16 / 13 h
Classification
EN 12941 TH3
Weight · AIR unit
1.65 kg
Belt and harness
Included as standard
Operating temperature
−5 °C – +55 °C
Dimensions
200 × 190 × 70 mm
Fan motor
Brushless
Alarms
Low airflow: audible, visual, vibration · Low battery: audible, visual · Filter: indicator

*Battery life depends on operating mode and filter condition.

Read the AIR system instructions ↗

REPLACEMENT PARTS

Built to be maintained.

All replacement parts →

Every wear part is replaceable: cover plates, sweatband, neck pad, headgear and the filter itself. Order by part number from your distributor.

THE RANGE

Which helmet is yours?

Every AKETEK® helmet shares the same True Colour filter, cover plates and accessories. The difference is the shell and what it lets you do.

Welding helmetsAIR / PAPR
FeatureVIEWCore modelLift-UpFor welding and grindingAUDIOFor hearing protectionVIEW AIRCore model with AIRLift-Up AIRWelding and grinding with AIR
Helmet weight530 g680 g515 g810 g930 g
Lift-up grinding visor–Yes · 170 × 85 mm––Yes · 170 × 85 mm
Powered air-purifying respirator–––Yes · TH3PYes · TH3P
Room for over-the-head earmuffs––Yes––
Shell colours71111
Auto-darkening filter1/1/1/1 · 3 / 8–121/1/1/1 · 3 / 8–121/1/1/1 · 3 / 8–121/1/1/1 · 3 / 8–121/1/1/1 · 3 / 8–12
GOOD TO KNOW

Common questions.

Which filters does the AIR unit use, and how often do I change them?

A spark arrestor (SKU 15030), an activated-carbon prefilter (SKU 80005) and a P3 HEPA particle filter (SKU 81001, 3-pack 81003). Change the prefilter regularly – as a rule of thumb, three prefilters per HEPA filter – and change the HEPA filter when the unit warns of a clogged filter. The prefilter does not replace the P3 filter.

How long does the AIR battery last?

13–16 hours on a full charge: about 16 hours on the low setting (190 l/min) and 13 hours on high (210 l/min). Runtime depends on the condition of the filters. The 3300 mAh battery (SKU 82001) is replaceable and charges with the AIR charger (SKU 82020).

Can I grind with the visor raised and the AIR unit running?

Yes. That is what Lift-Up AIR is for: fold the welding visor up, grind or inspect behind the clear grinding visor and keep breathing filtered air. Lower the welding visor again before striking an arc.

Can I use the head and neck covers with the AIR helmets?

No. The AIR helmets have a face seal that keeps the filtered air inside the helmet, so the head and neck covers for VIEW, Lift-Up and AUDIO do not fit. The hard hat adapter does not fit the AIR models either.

What does the warranty cover?

The auto-darkening filter has a two-year warranty; the AIR unit and its battery have a one-year warranty, against defects in materials and workmanship under normal use. Keep the invoice and the serial numbers as proof of purchase. Filters, cover plates, the face seal and other wear parts are consumables and are not covered.
